MIMO Technology: Revolutionizing Wireless Communications

Introduction

In the relentless pursuit of faster, more reliable, and efficient wireless communication, a technology has emerged as a cornerstone of modern wireless standards. This technology is MIMO, an acronym for Multiple-Input Multiple-Output. MIMO is not just a single feature but a fundamental paradigm shift that has transformed how data is transmitted and received over the air. It is the key technology that enabled the leap from 3G to 4G and continues to be the bedrock of 5G and Wi-Fi 6 (802.11ax). This article delves into the principles, types, and profound impact of MIMO on our connected world.

What is MIMO? The Core Concept

At its heart, MIMO is a smart radio technology that uses multiple antennas at both the transmitter and the receiver to simultaneously transmit multiple data streams. To understand its power, let's first look at its predecessor, SISO (Single-Input Single-Output).

• SISO: A traditional wireless system uses one antenna to send data and one antenna to receive it. All data is combined into a single stream and sent out. This is simple but highly susceptible to multipath fading—a phenomenon where radio signals reflect off buildings, hills, and other objects, arriving at the receiver at slightly different times and causing interference or signal cancellation.

• MIMO: Instead of fighting multipath, MIMO embraces and exploits it. By using multiple antennas, a MIMO system can create multiple, independent paths (spatial streams) for the data to travel through. This allows for a dramatic increase in data capacity and link reliability without requiring additional radio frequency spectrum.

How MIMO Works: Key Principles

MIMO's magic lies in two primary techniques: Spatial Multiplexing and Diversity.

a) Spatial Multiplexing: Boosting Data Rates

This is the most well-known benefit of MIMO. The goal here is to increase the throughput (data rate).

The Process:

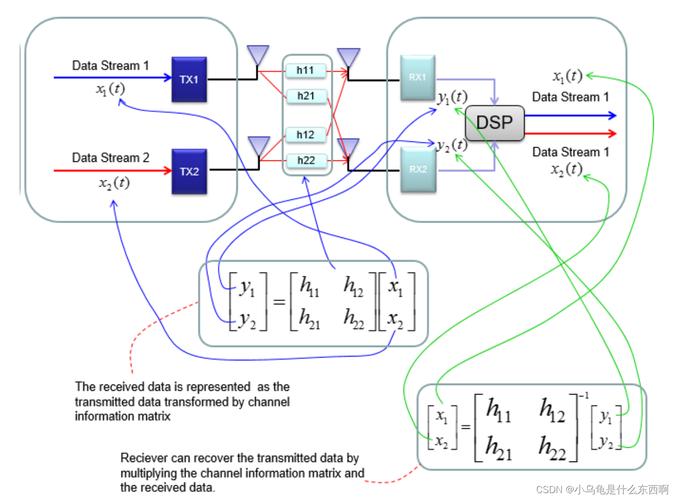

1. Data Splitting: At the transmitter, a high-speed data stream is split into multiple lower-speed parallel streams (e.g., 2 streams for a 2x2 MIMO system).
2. Simultaneous Transmission: These streams are transmitted simultaneously from the different antennas.
3. Signal Separation: At the receiver, the multiple antennas pick up a combination of all transmitted streams, each with a slightly different spatial signature due to multipath. The receiver uses sophisticated signal processing algorithms (like Maximum Likelihood Detection or Zero-Forcing) to separate these streams and reconstruct the original data.

Analogy: Imagine a multi-lane highway. Instead of sending all cars (data) down a single-lane road (SISO), MIMO creates multiple lanes (spatial streams), allowing many more cars to travel from point A to B at the same time, massively increasing the road's capacity.

b) Diversity: Enhancing Reliability

The goal here is to improve the link reliability and reduce errors, especially in challenging environments with weak signals or heavy interference.

The Process:

1. Redundant Transmission: The transmitter sends multiple copies of the same data stream, but from different antennas. These copies travel through different, independent paths in the wireless channel.
2. Combining Signals: The receiver gets multiple, slightly different versions of the same signal. It intelligently combines these copies to create a stronger, more accurate signal. If one copy is corrupted by interference or fading, the other copies can compensate for it.

Analogy: Instead of shouting a message once and hoping it's heard (SISO), you shout the same message from multiple people at the same time. The listener's brain (the receiver) combines the sounds from all directions to understand the message more clearly, even if there's background noise.

Main Types of MIMO Systems

MIMO systems are categorized by the number of antennas and their configuration.

• SISO (Single-Input, Single-Output): 1 Tx, 1 Rx. The baseline for comparison.
• SIMO (Single-Input, Multiple-Output): 1 Tx, multiple Rx. This is a receive diversity system, common in smartphones that have multiple antennas but often only one main transmit chain.
• MISO (Multiple-Input, Single-Output): multiple Tx, 1 Rx. This is a transmit diversity system, used in base stations to send robust signals to user devices.
• MIMO (Multiple-Input, Multiple-Output): multiple Tx, multiple Rx. This is the full implementation that enables both spatial multiplexing and diversity. A "2x2 MIMO" system has two transmit antennas and two receive antennas, supporting up to two spatial streams.

Key Advantages of MIMO

1. Increased Data Rates (Higher Throughput): By transmitting multiple data streams simultaneously, MIMO can multiply the data rate without increasing the bandwidth.
2. Improved Link Reliability and Range: By exploiting diversity, MIMO makes the wireless connection more robust against fading and interference, leading to fewer dropped calls and a wider effective coverage area.
3. Improved Spectral Efficiency: This is perhaps the most significant advantage. MIMO allows more bits of information to be transmitted per second per Hertz of available bandwidth. It squeezes more data into the same "radio pipe," making the use of the spectrum far more efficient.
4. Reduced Latency: More reliable connections and higher data rates contribute to lower latency, which is critical for applications like online gaming, video conferencing, and autonomous vehicles.

Real-World Applications

MIMO is not a theoretical concept; it's an integral part of the technologies we use every day.

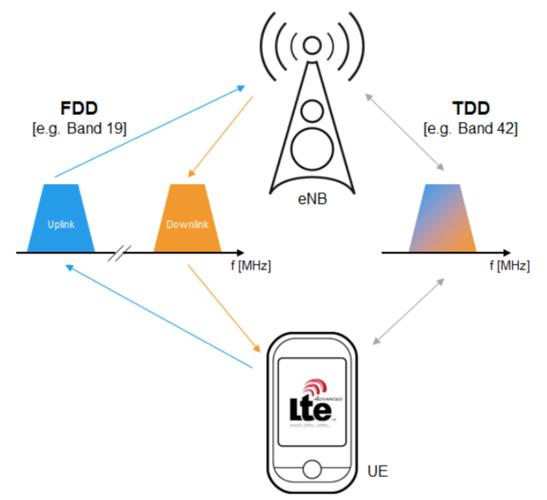

• 4G LTE (Long-Term Evolution): LTE heavily relies on MIMO. Downlink MIMO (e.g., 2x2, 4x4) is standard, and advanced versions like MU-MIMO (see below) are used to serve multiple users at once.
• 5G NR (New Radio): 5G takes MIMO to a new level with Massive MIMO. Base stations can be equipped with dozens or even hundreds of antenna elements, forming a large array. This allows for extremely high data rates, precise beamforming (focusing energy directly towards a user), and serving many more users simultaneously.
• Wi-Fi (802.11n, ac, ax): Modern Wi-Fi routers and devices use MIMO to speed up home and office networks. Wi-Fi 5 (802.11ac) introduced Multi-User MIMO, and Wi-Fi 6 (802.11ax) further refined it with OFDMA and more efficient MU-MIMO to handle dozens of connected devices.
• Satellite Communications and Radar: MIMO principles are also applied in these fields to improve signal quality and target detection capabilities.

The Evolution: From SU-MIMO to MU-MIMO

• SU-MIMO (Single-User MIMO): This is the classic form of MIMO described above, where all spatial streams are dedicated to a single user to maximize their data rate.
• MU-MIMO (Multi-User MIMO): This is a more advanced evolution. Instead of giving all streams to one user, a MU-MIMO system (like a Wi-Fi 6 router or a 5G base station) can communicate with multiple users simultaneously. It uses spatial division to create distinct "channels" for different users, allowing the network to handle more devices efficiently and reduce contention, which is a major bottleneck in crowded networks.

Conclusion

MIMO technology is a brilliant example of innovation turning a challenge—multipath fading—into a powerful advantage. By intelligently using multiple antennas, it has shattered the limitations of traditional wireless systems, paving the way for the high-speed, low-latency, and ubiquitous connectivity we enjoy today. As we move towards an even more connected future with the Internet of Things (IoT) and advanced automation, MIMO, in its ever-evolving forms like Massive MIMO, will continue to be the silent engine driving the wireless revolution.
